①7-inch color LCD screen;
Mode 1: The duty cycle is 1s, the frequency is 1Hz, and the duty cycle is 10%;
Mode 2: The duty cycle is 2s, the frequency is 0.5Hz, and the duty cycle is 10%;
Mode 3: The duty cycle is 2.5s, the frequency is 0.4Hz, and the duty cycle is 8%;
Mode 4: The working period is 3s, the frequency is 0.33Hz, and the duty cycle is 13.33%;
Mode 5: The duty cycle is 4s, the frequency is 0.25Hz, and the duty cycle is 25%;
The first type: frequency 0.71Hz, duty cycle 29%;
The second type: frequency 0.28Hz, duty ratio 11%;
shoulder thermal applicator;
2. ★3.5-inch color LCD display;
3. Magnetic field intensity: 0–38 mT;
4. Vibration frequency: 50 Hz ± 1 Hz;
5. ★Six working mode options available (1s, 2s, 2.5s, 3s, 4s, 5s);
Mode 1: Working cycle 1s, frequency 1 Hz, duty cycle 10%;
Mode 2: Working cycle 2s, frequency 0.5 Hz, duty cycle 10%;
Mode 3: Working cycle 2.5s, frequency 0.4 Hz, duty cycle 8%;
Mode 4: Working cycle 3s, frequency 0.33 Hz, duty cycle 13.33%;
Mode 5: Working cycle 4s, frequency 0.25 Hz, duty cycle 25%;
Mode 6: Working cycle 5s with two alternating pulses:
First: frequency 0.71 Hz, duty cycle 29%;
Second: frequency 0.28 Hz, duty cycle 11%;
6. ★Heating settings: Five adjustable levels—40°C, 46°C, 52°C, 58°C, and
room temperature, with a ±2°C margin of error;
7. Over-temperature protection: Independent from the thermostat, non-self-resetting
Heating and Magnetic Vibrator Therapeutic Equipment

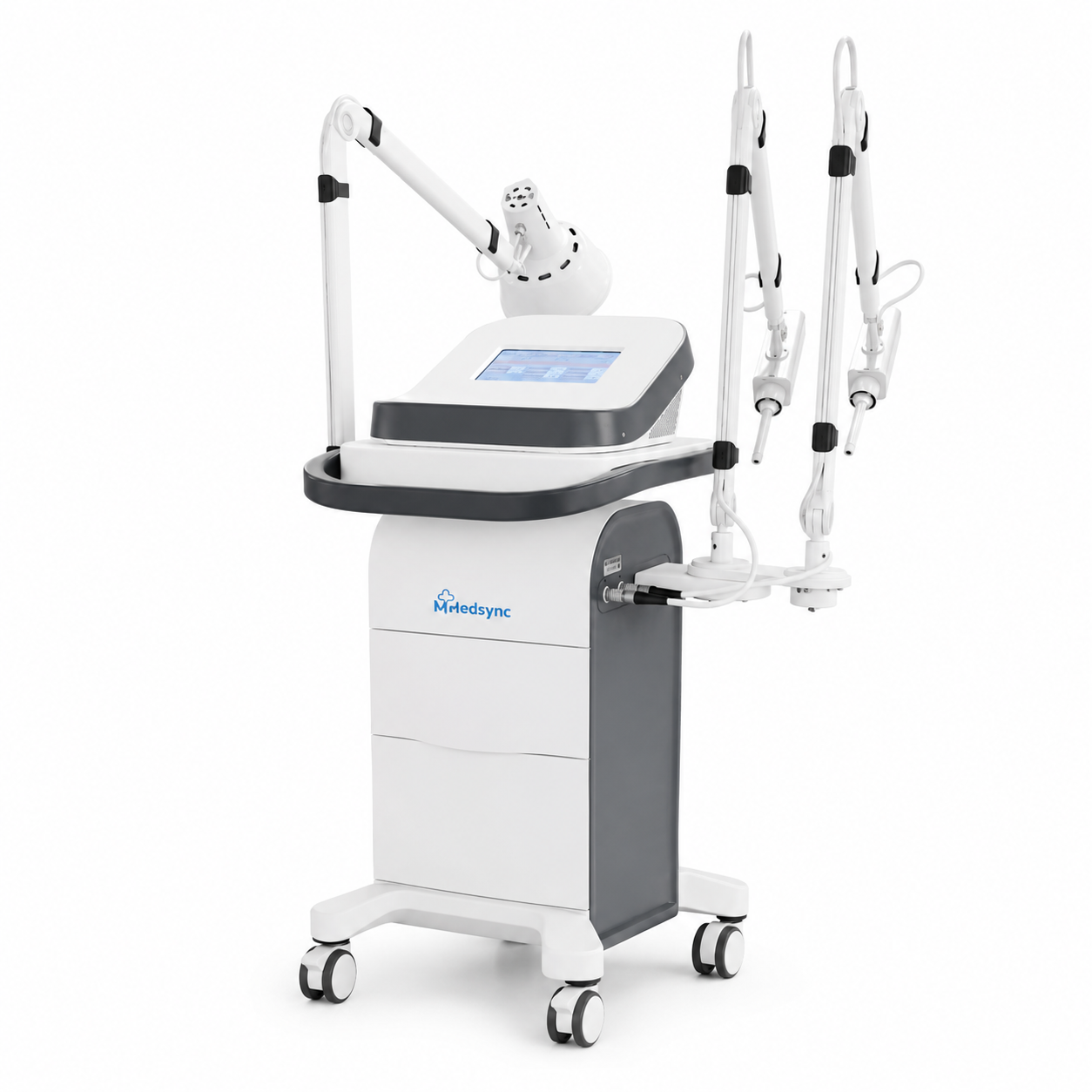

The magnetic vibration thermotherapy device consists of a main unit and magnetic line conductors, and is a physical therapy apparatus that combines three physical factors: alternating magnetic field, vibration, and thermal effects.
Alternating magnetic field: improve cell membrane permeability, reduce swelling and
inflammation, improve blood circulation, inhibit the excitability of peripheral nerves,
and relieve pain;
Vibration: Change the shape of capillaries and increase the muscle tension of blood
vessels, expand blood vessels and promote local blood circulation;
Warmth: It relaxes vascular smooth muscles, accelerates blood circulation, accelerates
the supply of tissue nutrients, and accelerates the discharge of inflammatory
substances.
Therapeutic mechanism
